Configuring phg secure I/O modules to ignore tamper events

2025-04-23Last updated

The tamper detection switch on top of the phg secure I/O module triggers tamper events continuously when the module is installed without its cover. To prevent this, you can configure the phg secure I/O module to suppress tamper inputs, so that tamper events are ignored in Security Center.

Before you begin

Create an OSDP channel.

What you should know

The Ignore tamper option can only be configured after the module is enrolled, not during enrollment.

Procedure

  1. From the hardware tree, select the phg secure I/O module you added while creating the OSDP channel and click Edit ().
  2. In the Properties dialog box, select the Ignore tamper option.

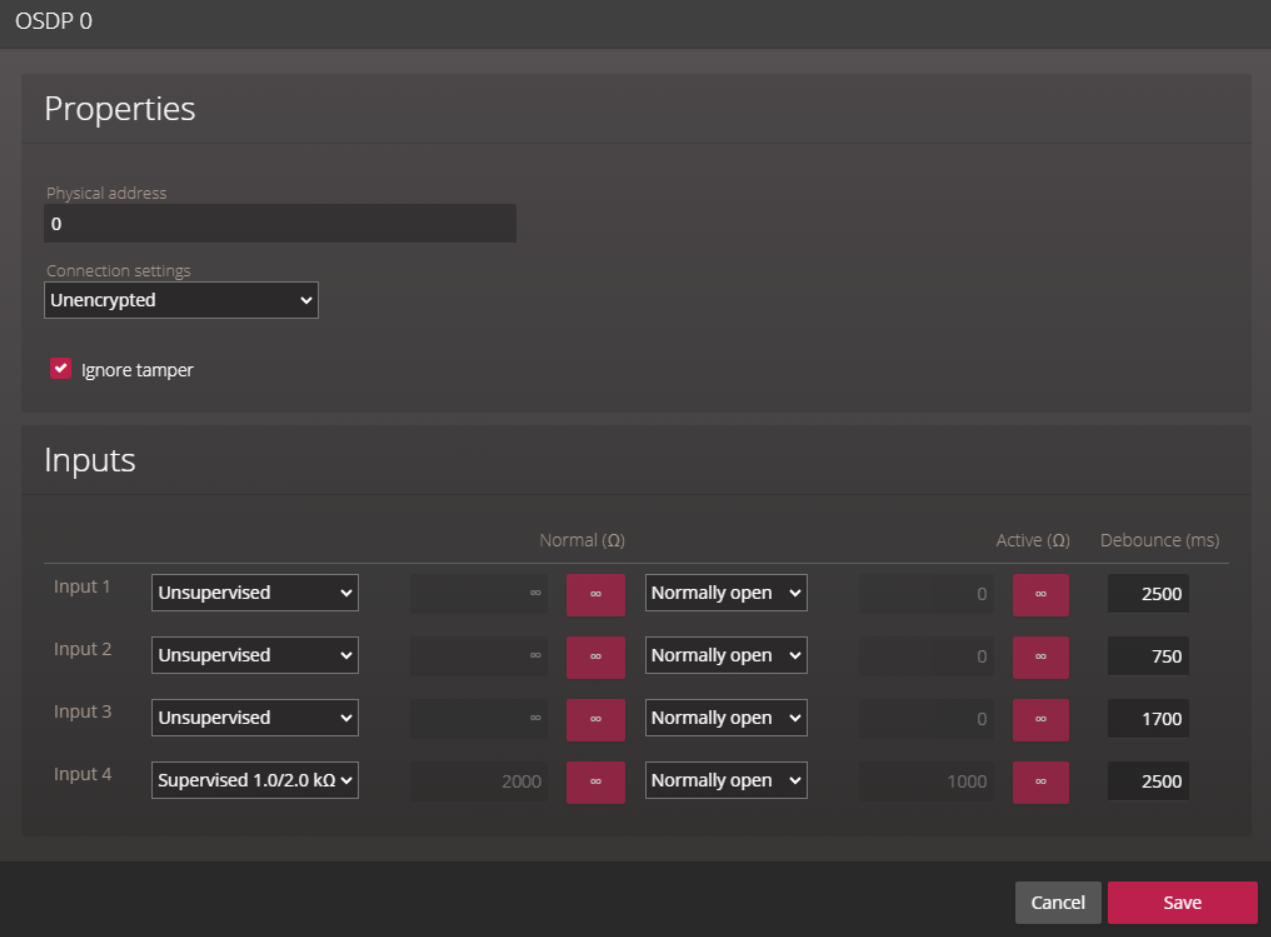

    OSDP properties of the phg secure I/O module in the Synergis Appliance Portal.
  3. Click Save.
