Preparing to enroll SimonsVoss SmartIntego locks

2025-07-16Last updated

Before you can enroll the SmartIntego locks on the Synergis™ Cloud Link unit, you must pair the Gateway node to your SmartIntego locks.

What you should know

The steps and instructions tagged with Hardening are optional, but will protect your system against cyberattacks.

Procedure

  1. Follow the documentation that came with your SmartIntego devices and pair the Gateway node to your SmartIntego locks.
  2. Write down the following information:
    • The IP address of the Gateway node.
    • The device IDs taken from the SmartIntego Manager window.

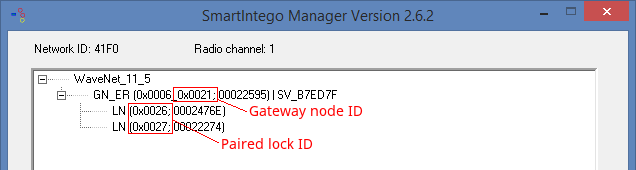

      SmartIntego Manager interface showing Gateway node and paired lock IDs.
      The Gateway node ID is the second hexadecimal number following GN_ER.

      The lock ID is the first hexadecimal number following LN.

  3. (Hardening) Follow the documentation that came with your SmartIntego devices and configure the communication encryption key for your locks.
    SmartIntego software does not allow a lock to be paired to the hub without a password. Use a strong password for the locking system.

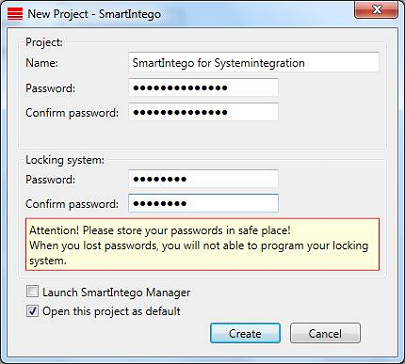

    SmartIntego New Project dialog showing password fields and a warning about password safety.
