Retrieving entity GUIDs

2024-02-07

Before you can specify a cardholder group in an automation engine rule, you must retrieve the entity's GUID (global unique identifier) from Config Tool.

Procedure

From the Config Tool homepage, open the Access control task, and click the Cardholders and credentials view.
Select the cardholder group from the entity tree.

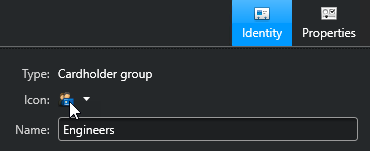

On the Identity page of the cardholder group, hold the Ctrl key and double-click the entity icon.

The GUID is copied to your clipboard.

Watch this video to learn more. Click the Captions icon (CC) to turn on video captions in one of the available languages.
