Testing the connected interface modules

2023-11-15

You can test your hardware connections and configuration by monitoring their responses in real time on the I/O diagnostics page of the Synergis™ Appliance Portal.

Before you begin

Configure the interface modules.

What you should know

You can customize the page to show the elements that you want to monitor.

Procedure

Log on to the Synergis Cloud Link unit.

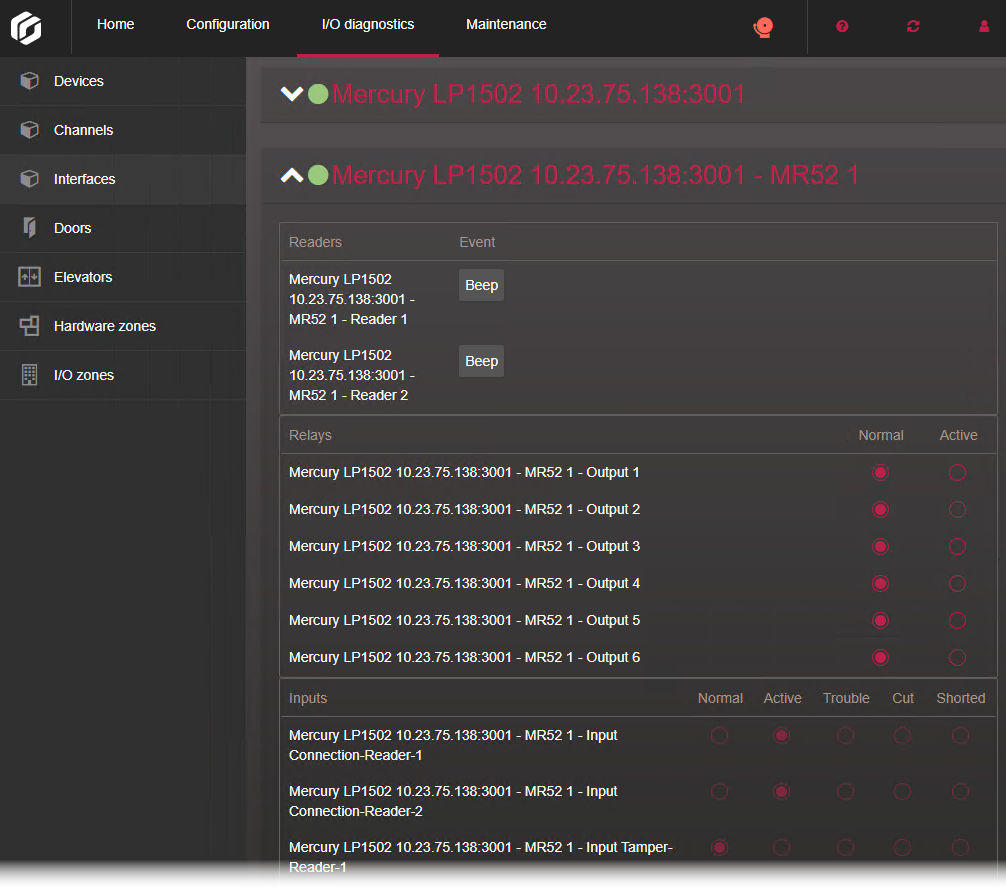

Click I/O diagnostics > Interfaces .
Click to expand the interface you want to monitor.
Activate the devices (card readers, door sensors, door locks, and so on) connected to the Synergis Cloud Link unit through the interface modules.
If they do not behave as expected, check your connections and your interface module configurations.
