Mercury MR16out connections

2024-07-04

As part of your Synergis™ Cloud Link installation, you might need to include a Mercury MR16out interface module.

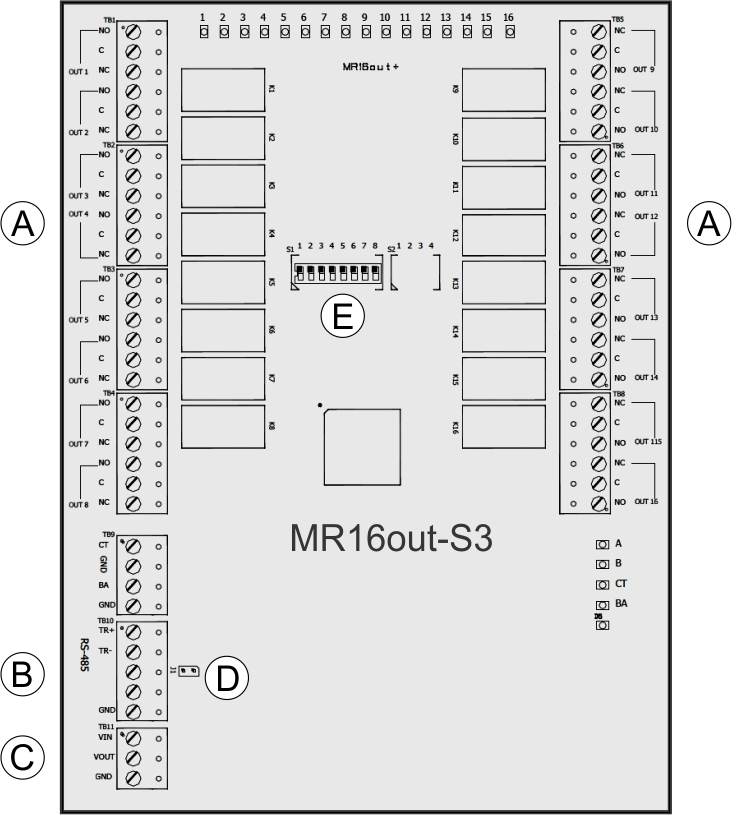

The following diagram demonstrates how to connect the module.


A	Outputs	MR16out: 5A inductive, 0.6 PF MR16out-S3: NO: 5A, NC: 3A, inductive, 0.6 PF
B	RS-485	RS-485 bus connection to other Mercury modules.
C	Power in	Connect + to VIN (observe polarity). Connect - to GND. Use 20 AWG wires minimum.
E	Line termination	For interface modules at end of line, install Jumper J1 for 120 ohm line termination.
F	Address switches	Used to set the device address. For more information on address settings on the Mercury module, refer to the manufacturer's instructions.
